No Specifications

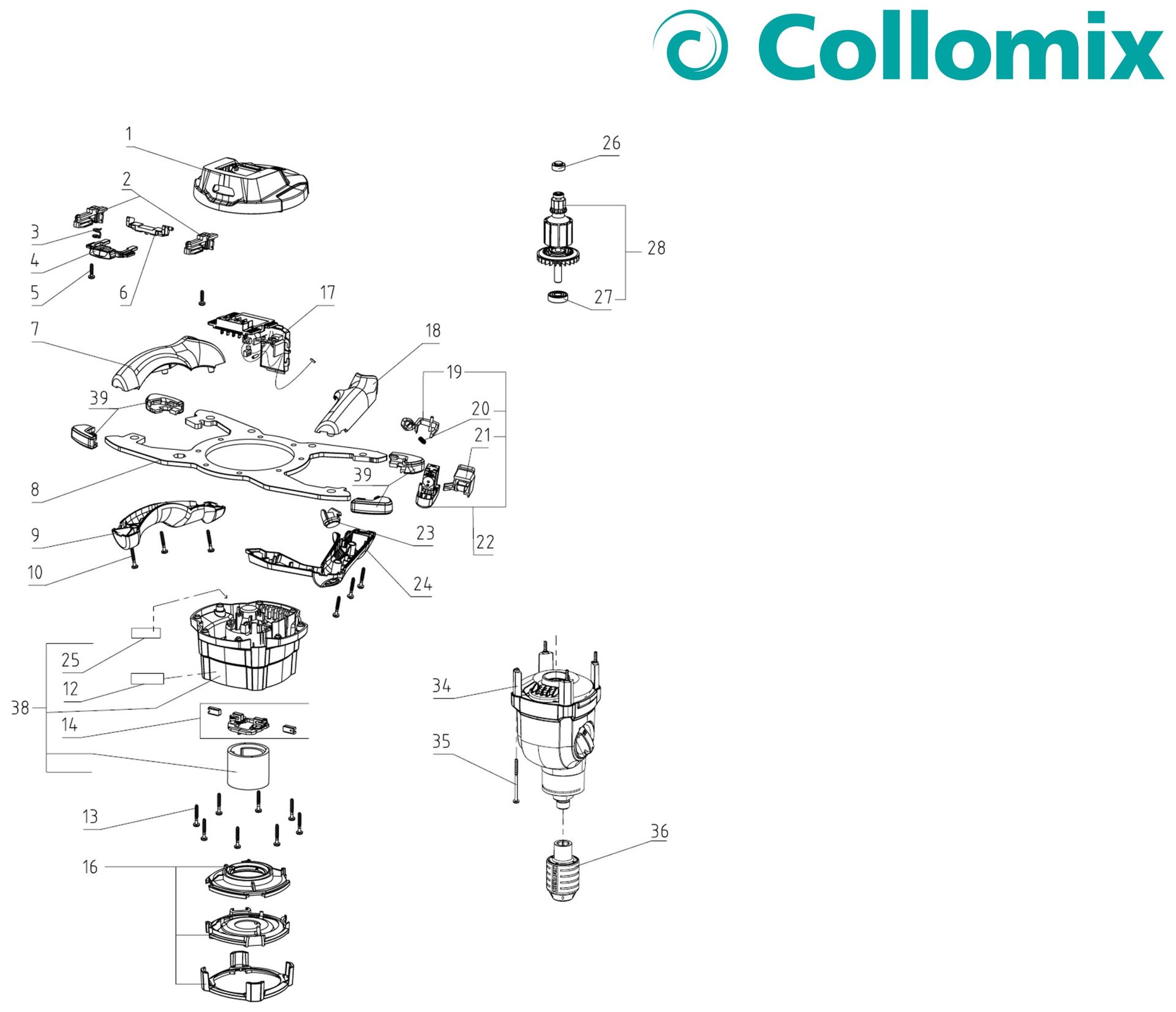

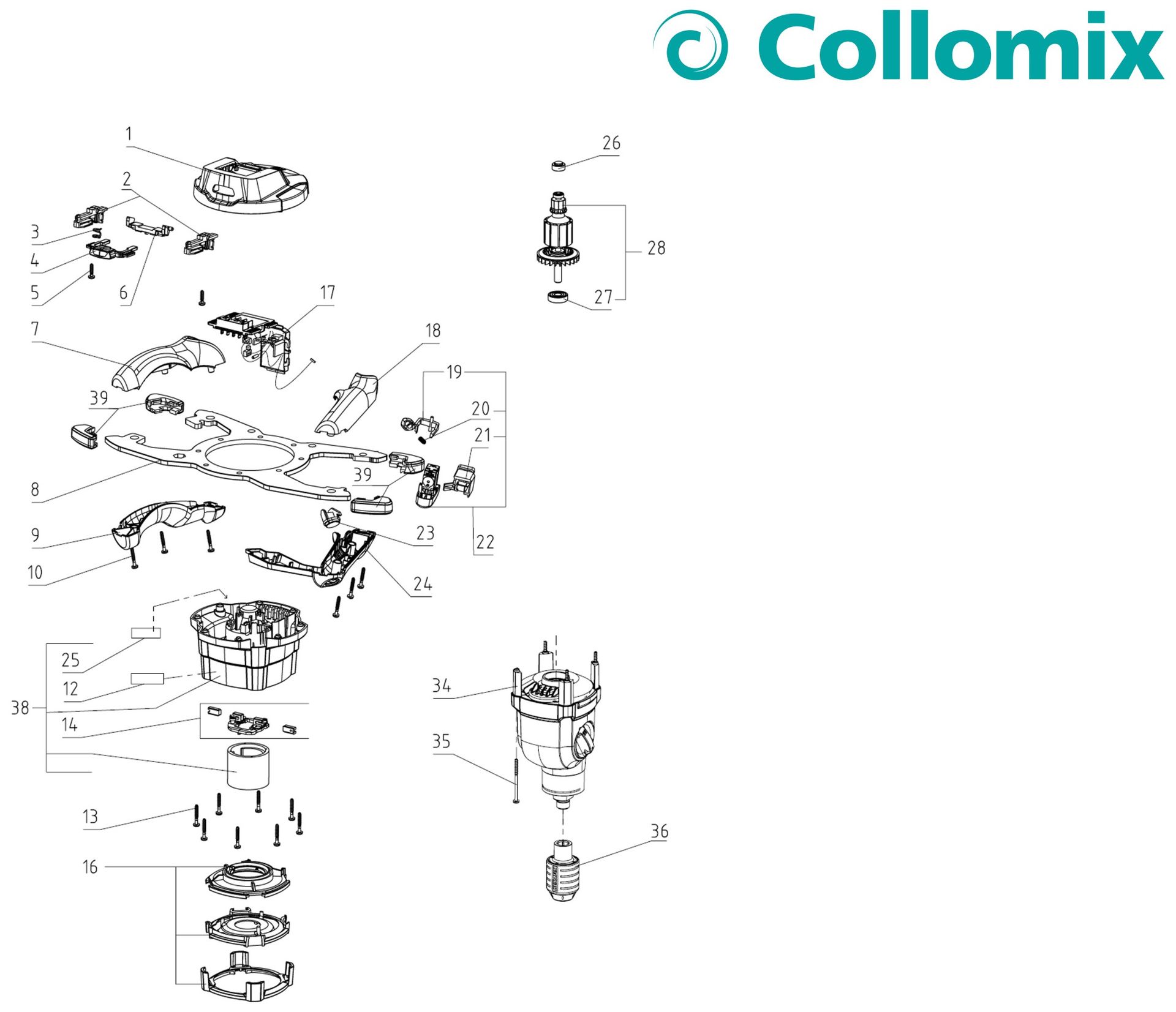

Parts drawing
1 of 30 in stock · click a number on the drawing
PDF
Download drawing
| # | Code / Description | Price | |
|---|---|---|---|
| 1 | Battery holder21317 | — | 📧 Quote |
| 2 | Guiding21333 | — | 📧 Quote |
| 3 | Leg spring21332 | — | 📧 Quote |
| 4 | Latching slider21330 | — | 📧 Quote |
| 5 | Screw 4x16 Tx2021042 | — | 📧 Quote |
| 6 | Locking piece21331 | — | 📧 Quote |
| 7 | Handle left top turquoise21392 | — | 📧 Quote |
| 8 | Handle21068 | — | 📧 Quote |
| 9 | Handle left base turquoise21393 | — | 📧 Quote |
| 10 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 13 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 14 | Brush holder with brushes21324 | — | 📧 Quote |
| 16 | Air outlet Xo20NC21514 | — | 📧 Quote |
| 17 | Electronic unit21328 | — | 📧 Quote |
| 18 | Handle right top turquoise21394 | — | 📧 Quote |
| 19 | Lever21032 | — | 📧 Quote |
| 20 | Spring21033 | — | 📧 Quote |
| 21 | Clamp21329 | — | 📧 Quote |
| 22 | Switch assy Xo10NC21350 | — | 📧 Quote |
| 23 | Plug21320 | — | 📧 Quote |
| 24 | Handle right base turquoise21395 | — | 📧 Quote |
| 25 | Logo sticker Xo 20 NC21490 | — | 📧 Quote |
| 26 | Rubber sleeve21327 | — | 📧 Quote |
| 27 | Ball Bearing 609 2RS21028 | — | 📧 Quote |
| 28 | Rotor 18V21512 | — | 📧 Quote |
| 34 | Gear compl.21502 | — | 📧 Quote |
| 35 | Screw 4x55/20 Tx2021043 | — | 📧 Quote |
| 36 | Hexafix koppeling met beschermhuls On request 49521 | € 22,00 | |
| 38 | Motor housing Xo20NC ET21513 | — | 📧 Quote |
| 39 | Rubber buffers set21468 | — | 📧 Quote |
