| Uitvoering | Met mengstaaf or Zonder mengstaaf |

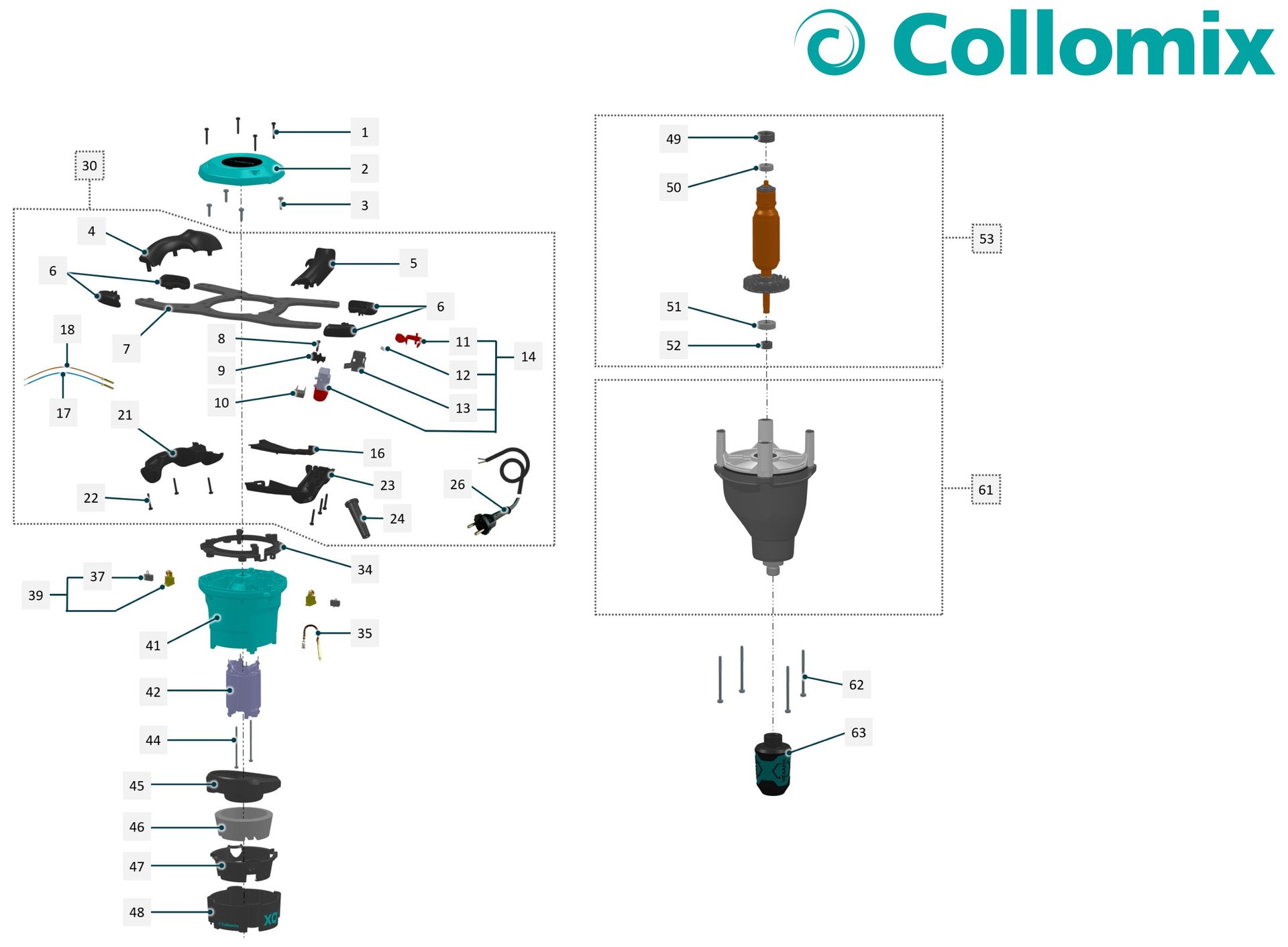

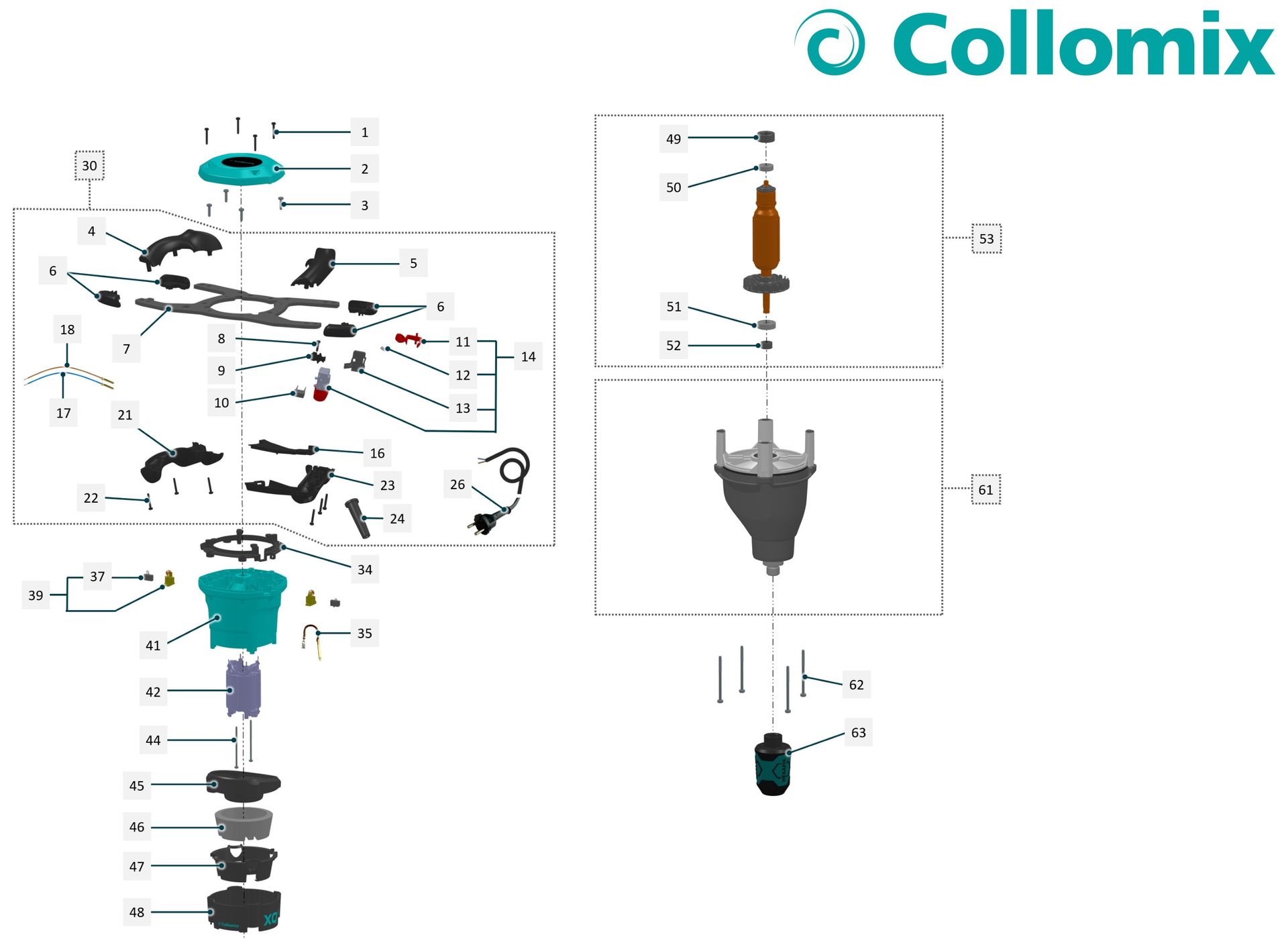

Parts drawing
3 of 41 in stock · click a number on the drawing
PDF
Download drawing
| # | Code / Description | Price | |
|---|---|---|---|
| 1 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 2 | Motor cover XQ1 imprinted21682 | — | 📧 Quote |
| 3 | Screw 50x18 Tx2521628 | — | 📧 Quote |
| 4 | Handle left top21608 | — | 📧 Quote |
| 5 | Handle right top21604 | — | 📧 Quote |
| 6 | Rubber buffers set21580 | — | 📧 Quote |
| 8 | Screw 4x16 Tx2021042 | — | 📧 Quote |
| 9 | Strain relief21047 | — | 📧 Quote |
| 10 | Capacitor21035 | — | 📧 Quote |
| 11 | Lever21032 | — | 📧 Quote |
| 12 | Spring21033 | — | 📧 Quote |
| 13 | Clamp21034 | — | 📧 Quote |
| 14 | Collomix | Schakelaar On request 21114 | € 22,50 | |
| 16 | Cover short21666 | — | 📧 Quote |
| 17 | Cable switch blue 230V21624 | — | 📧 Quote |
| 18 | Cable switch brown 230V21625 | — | 📧 Quote |
| 21 | Handle left bottom21607 | — | 📧 Quote |
| 22 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 23 | Handle right bottom short21605 | — | 📧 Quote |
| 24 | Cable sleeve 230V21038 | — | 📧 Quote |
| 26 | Netkabel 230V EU In stock 23557 | € 12,20 | |
| 30 | Handle XQ1 230V EU compl.21532 | — | 📧 Quote |
| 34 | Connection ring21619 | — | 📧 Quote |
| 35 | Wire carbon stator 230V21661 | — | 📧 Quote |
| 37 | Koolborstelset 230V On request 21076 | € 10,20 | |
| 39 | Carbon brush with holder 230V (1 pc)21040 | — | 📧 Quote |
| 41 | Motor housing21602 | — | 📧 Quote |
| 42 | Stator 230V21018 | — | 📧 Quote |
| 44 | Screw 3,5x70/35 Tx1521044 | — | 📧 Quote |
| 45 | Air guide ring21638 | — | 📧 Quote |
| 46 | Acoustic foam21671 | — | 📧 Quote |
| 47 | Rectifier21640 | — | 📧 Quote |
| 48 | Air Outlet XQ1 imprinted21683 | — | 📧 Quote |
| 49 | Rubber sleeve D2221636 | — | 📧 Quote |
| 50 | Ball Bearing 626 2RS C321027 | — | 📧 Quote |
| 51 | Ball Bearing 609 2RS21028 | — | 📧 Quote |
| 52 | Sealing sleeve D921633 | — | 📧 Quote |
| 53 | Rotor 230V21570 | — | 📧 Quote |
| 61 | Gear compl.21547 | — | 📧 Quote |
| 62 | Screw 4x55/20 Tx2021043 | — | 📧 Quote |
| 63 | Hexafix PRO49450 | — | 📧 Quote |
