| Uitvoering | Met mengstaaf or Zonder mengstaaf |

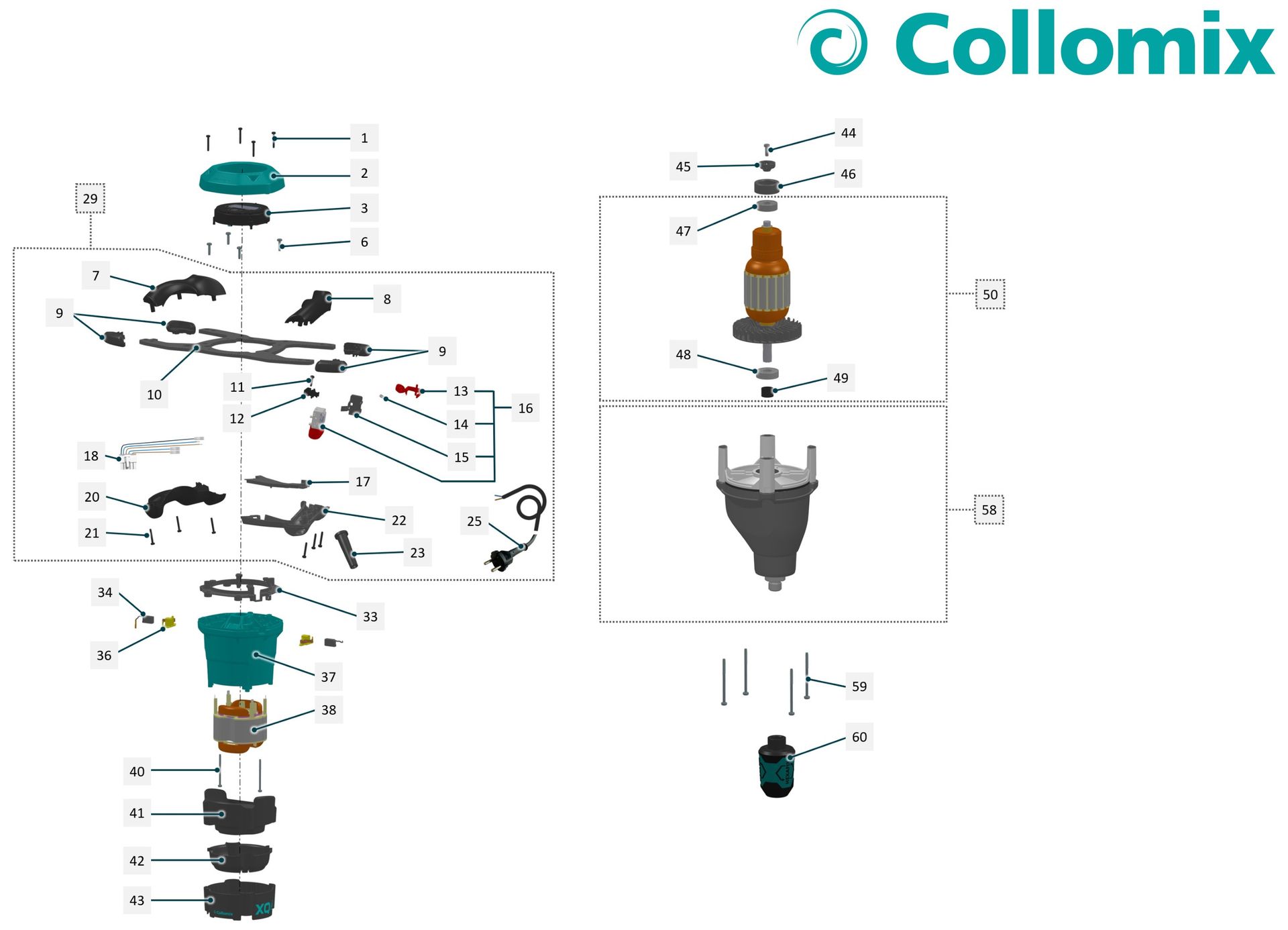

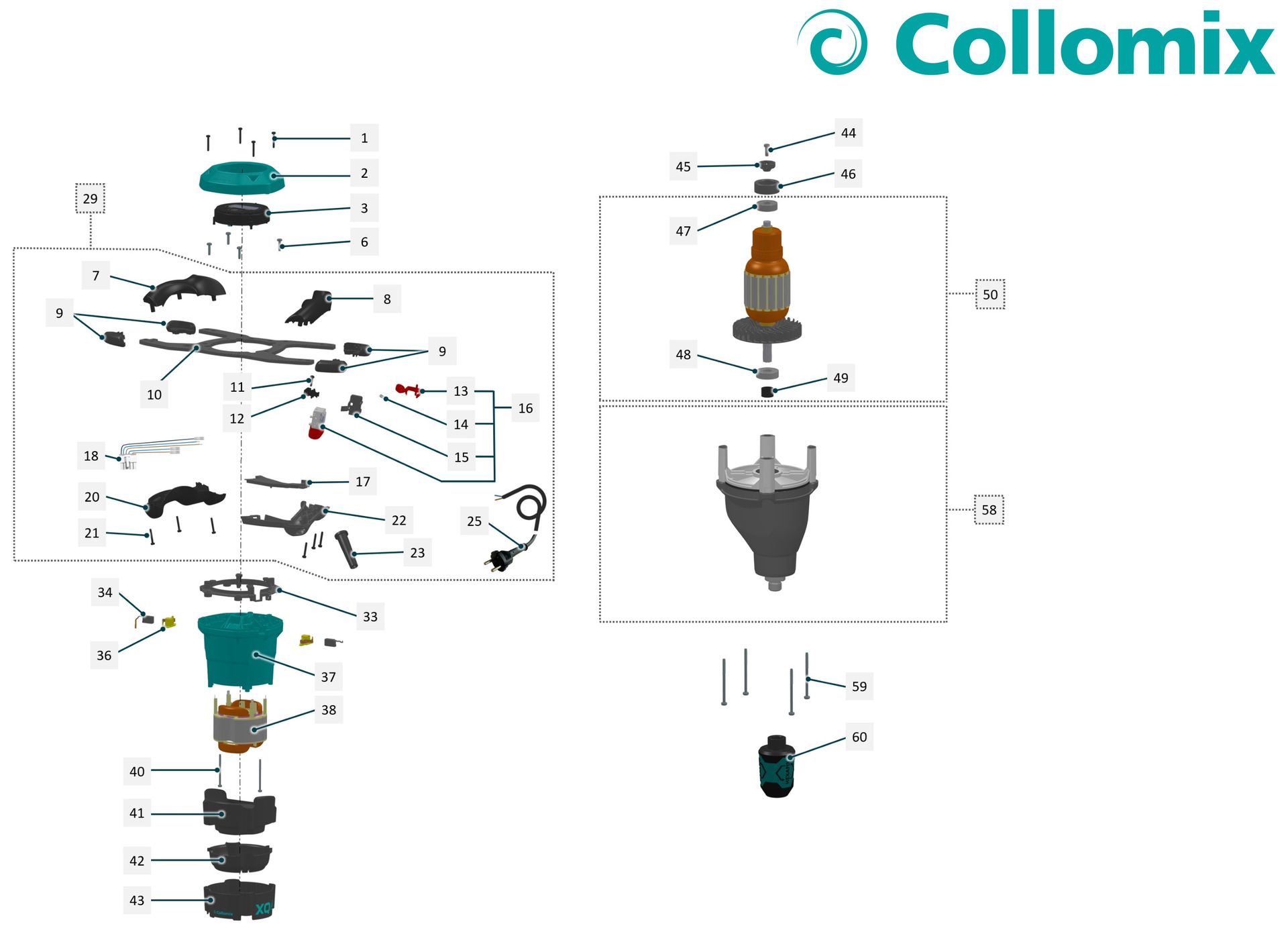

Parts drawing
4 of 41 in stock · click a number on the drawing
PDF
Download drawing
| # | Code / Description | Price | |
|---|---|---|---|
| 1 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 2 | Motor cover XQ421616 | — | 📧 Quote |
| 3 | Collomix | Electronic XQ4 230V/50Hz Compleet On request 21557 | € 79,30 | |
| 6 | Screw 50x18 Tx2521628 | — | 📧 Quote |
| 7 | Handle left top21608 | — | 📧 Quote |
| 8 | Handle right top21604 | — | 📧 Quote |
| 9 | Rubber buffers set21580 | — | 📧 Quote |
| 10 | Handle21660 | — | 📧 Quote |
| 11 | Screw 4x16 Tx2021042 | — | 📧 Quote |
| 12 | Strain relief21047 | — | 📧 Quote |
| 13 | Lever21032 | — | 📧 Quote |
| 14 | Spring21033 | — | 📧 Quote |
| 15 | Clamp21034 | — | 📧 Quote |
| 16 | Collomix | Drukknop voor XQ Mixer On request 21516 | € 9,00 | |
| 17 | Cover short21666 | — | 📧 Quote |
| 18 | Wiring harness 230V21626 | — | 📧 Quote |
| 20 | Handle left bottom21607 | — | 📧 Quote |
| 21 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 22 | Handle right bottom short21605 | — | 📧 Quote |
| 23 | Cable sleeve 230V21038 | — | 📧 Quote |
| 25 | Netkabel 230V EU In stock 23557 | € 12,20 | |
| 29 | Handle 230V EU compl.21537 | — | 📧 Quote |
| 33 | Connection ring21619 | — | 📧 Quote |
| 34 | Carbon brush set 230V21578 | — | 📧 Quote |
| 36 | Collomix | XQ Koolborstelhouder On request 21674 | € 3,57 | |
| 37 | Motor housing21603 | — | 📧 Quote |
| 38 | Stator 230V21673 | — | 📧 Quote |
| 40 | Screw 4x55/20 Tx2021043 | — | 📧 Quote |
| 41 | Air guide ring21639 | — | 📧 Quote |
| 42 | Rectifier21641 | — | 📧 Quote |
| 43 | Air Outlet XQ4 imprinted21684 | — | 📧 Quote |
| 44 | Screw M4x12 low head21668 | — | 📧 Quote |
| 45 | Tacho ring21635 | — | 📧 Quote |
| 46 | Rubber sleeve D2621637 | — | 📧 Quote |
| 47 | Ball Bearing 629 2RS C321632 | — | 📧 Quote |
| 48 | Ball Bearing 6001 2RS C321101 | — | 📧 Quote |
| 49 | Sealing sleeve D1121634 | — | 📧 Quote |
| 50 | Rotor 230V21572 | — | 📧 Quote |
| 58 | Gear compl.21548 | — | 📧 Quote |
| 59 | Screw 4x55/20 Tx2021043 | — | 📧 Quote |
| 60 | Hexafix PRO49450 | — | 📧 Quote |
