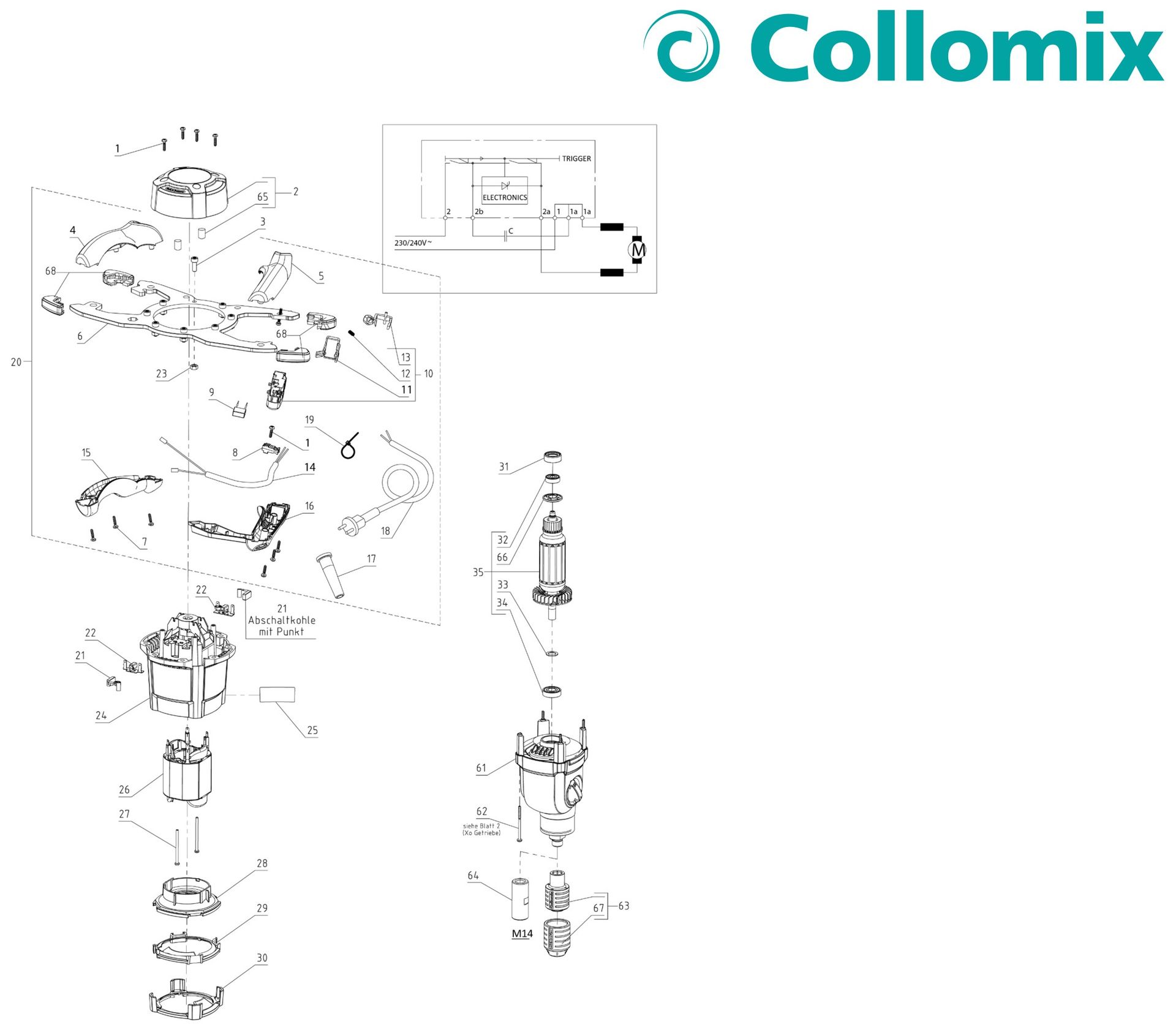

Parts drawing
5 of 43 in stock · click a number on the drawing
PDF
Download drawing
| # | Code / Description | Price | |
|---|---|---|---|
| 1 | Screw 4x16 Tx2021042 | — | 📧 Quote |
| 2 | Motor cover21467 | — | 📧 Quote |
| 3 | Screw M6x16 Tx3021045 | — | 📧 Quote |
| 4 | Handle left top turquoise21392 | — | 📧 Quote |
| 5 | Handle right top turquoise21394 | — | 📧 Quote |
| 6 | Handle21068 | — | 📧 Quote |
| 7 | Screw 4x25 Tx2021058 | — | 📧 Quote |
| 8 | Strain relief21047 | — | 📧 Quote |
| 9 | Capacitor21035 | — | 📧 Quote |
| 10 | Collomix | Schakelaar On request 21114 | € 22,50 | |
| 11 | Clamp21034 | — | 📧 Quote |
| 12 | Spring21033 | — | 📧 Quote |
| 13 | Lever21032 | — | 📧 Quote |
| 14 | Cable switch 230V21108 | — | 📧 Quote |
| 15 | Handle left base turquoise21393 | — | 📧 Quote |
| 16 | Handle right base turquoise21395 | — | 📧 Quote |
| 17 | Cable sleeve 230V21038 | — | 📧 Quote |
| 18 | Netkabel 230V EU In stock 23557 | € 12,20 | |
| 19 | Cable clip L 92 mm61117 | — | 📧 Quote |
| 20 | Handle 230V EU compl.21426 | — | 📧 Quote |
| 21 | Koolborstelset 230V - Xo4/Xo6 On request 21143 | € 11,30 | |
| 22 | Koolborstelhouder 230V On request 21064 | € 5,24 | |
| 23 | Hexagon nut M621046 | — | 📧 Quote |
| 24 | Motor housing21077 | — | 📧 Quote |
| 25 | Logo sticker Xo6R21413 | — | 📧 Quote |
| 26 | Stator 230V21443 | — | 📧 Quote |
| 27 | Screw 3,5x70/35 Tx1521044 | — | 📧 Quote |
| 28 | Baffle plate21127 | — | 📧 Quote |
| 29 | Rectifier21263 | — | 📧 Quote |
| 30 | Air Outlet21264 | — | 📧 Quote |
| 31 | Rubber sleeve21097 | — | 📧 Quote |
| 32 | Ball Bearing 608 2RS C321100 | — | 📧 Quote |
| 33 | DIN 988 shim ring 12x18x121136 | — | 📧 Quote |
| 34 | Ball Bearing 6001 2RS C321101 | — | 📧 Quote |
| 35 | Rotor 230V21442 | — | 📧 Quote |
| 61 | Gear compl.21463 | — | 📧 Quote |
| 62 | Screw 4x55/20 Tx2021043 | — | 📧 Quote |
| 63 | Hexafix koppeling met beschermhuls On request 49521 | € 22,00 | |
| 64 | Connector M1449583 | — | 📧 Quote |
| 65 | Plug21109 | — | 📧 Quote |
| 66 | Insulating disc21072 | — | 📧 Quote |
| 67 | Protection sleeve Hexafix turquoise49541 | — | 📧 Quote |
| 68 | Rubber buffers set21468 | — | 📧 Quote |
